Wind Tunnel Aerodynamic Testing of a Space Shuttle Orbiter Scale Model

Low-speed wind tunnel testing of a 1:286 scale Space Shuttle Orbiter with lift and drag measurements across angle of attack

Overview

This project involved the design, execution, and analysis of a low-speed wind tunnel experiment to evaluate the aerodynamic performance of a 1:286 scale Space Shuttle Orbiter. The objective was to quantify how angle of attack (AoA) affects lift, drag, and aerodynamic efficiency, and to compare experimental trends with published NASA flight and sub-scale data.

The model was tested over an AoA range from −10° to 30° at a freestream velocity of 20 m/s, representative of low-speed approach and landing conditions.

Experimental Setup

A scaled three-dimensional model of the Space Shuttle Orbiter was fabricated and mounted in a low-speed wind tunnel using a calibrated force balance.

Key setup parameters:

  • Scale: 1:286
  • Freestream velocity: 20 m/s
  • Angle of attack range: −10° to 30°
  • Measured quantities: lift force, drag force
  • Data processing: MATLAB post-processing and uncertainty analysis

The force balance was calibrated prior to testing to ensure accurate lift and drag measurements.

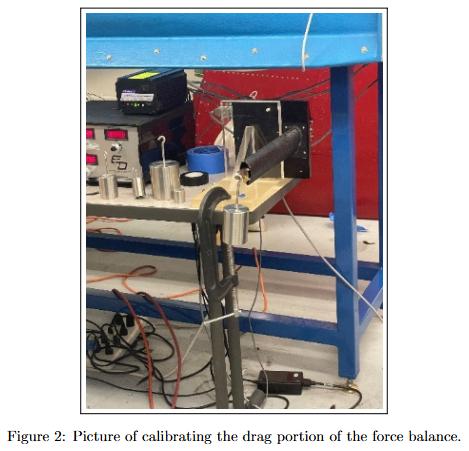

Three-dimensional CAD model of the 1:286 scale Space Shuttle Orbiter and experimental calibration of the force balance prior to testing.

Test Procedure

The model was incrementally rotated to prescribed angles of attack. At each AoA, steady-state force measurements were recorded and converted to aerodynamic coefficients using standard nondimensionalization.

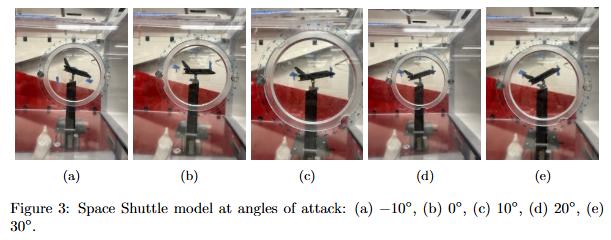

Space Shuttle model mounted in the wind tunnel at angles of attack of −10°, 0°, 10°, 20°, and 30°.

Results and Analysis

Lift and drag coefficients were computed from the measured forces and analyzed as functions of angle of attack.

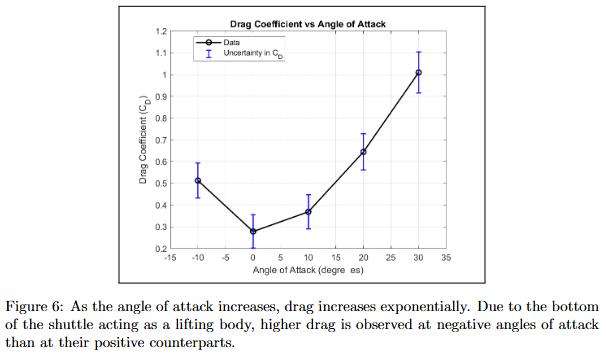

Drag coefficient as a function of angle of attack, including experimental uncertainty. Drag increases rapidly with AoA, with higher drag observed at negative angles due to the orbiter’s lifting-body geometry.

Key Findings

  • Maximum lift coefficient:
    • ( C_L \approx 1.01 ) at 20°, followed by stall behavior
  • Maximum lift-to-drag ratio:
    • ( L/D \approx 1.88 ) at 10°
  • Lift behavior:
    • Approximately linear at low angles of attack
  • Drag behavior:
    • Rapid growth with increasing AoA, consistent with bluff-body and lifting-body aerodynamics

Although the experimental Reynolds number (~1×10⁵) was significantly lower than full-scale Shuttle flight conditions, the qualitative aerodynamic trends matched NASA sub-scale test data.

Comparison to Flight Data

Compared to flight conditions:

  • Drag was higher due to low Reynolds number effects
  • Maximum ( L/D ) was lower than flight values
  • The AoA corresponding to peak efficiency aligned with Shuttle approach and landing data (≈10–12°)

Despite scaling limitations, the experiment successfully reproduced the expected aerodynamic behavior of the Space Shuttle Orbiter.

Takeaways

This project demonstrated the full experimental aerodynamics workflow:

  • Model scaling and fabrication
  • Force balance calibration
  • Wind tunnel testing
  • Data reduction and uncertainty analysis
  • Comparison with real flight data

The results confirmed that even at reduced Reynolds numbers, wind tunnel testing captures the dominant aerodynamic trends governing Space Shuttle approach and landing performance.

Tools and Techniques

  • Low-speed wind tunnel testing
  • Force balance calibration
  • Aerodynamic coefficient calculation
  • MATLAB data analysis and plotting
  • Experimental uncertainty analysis
